FF102/25

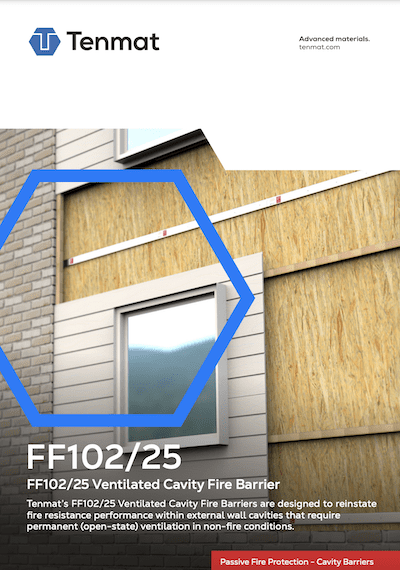

The FF102/25 Ventilated Fire Barriers are rigid, high expansion intumescent strips encased in aluminium foil.

You are here:

FF102/25

The FF102/25 Ventilated Fire Barriers are rigid, high expansion intumescent strips encased in aluminium foil.

PASSIVE FIRE PROTECTION

High expansion intumescent seals

The FF102/25 can be mechanically fixed horizontally within ventilated cavities behind rain-screen or cladding systems to act as a cavity fire barrier.

The FF102/25 Ventilated Fire Barriers are high expansion intumescent seals offering industry-leading performance as Ventilated Cavity Fire Barriers / ‘Open State’ Cavity Fire Barriers. The products have undergone extensive fire testing and are suitable for use within the majority of construction types, enabling the versatile system to be specified with confidence and provide the installer with a simple, time-saving and site-friendly solution.

FF102/25 at a glance

An “Open State” cavity fire barrier for use horizontally within uninsulated, ventilated and drained cavities
CCPI Verified
Fire Rated for up to 60 minutes for both integrity and insulation when tested to the general principles of BS EN 1363-1 following ASFP TGD 19 guidance
No maintenance is required after installation

Ventilated design – developed to allow maximum ventilation and drainage of cavities reducing the need for cavity trays or weepholes
Suitable for “open-state” ventilated cavities up to 25mm wide
Provided in strips of 1m long, 35mm wide and 4mm thick
Lightweight – designed to be easily and quickly installed

Understanding Passive Fire Protection:
Our RIBA approved CPD

Ensure your team has the complete understanding they need to make informed decisions about passive fire protection for their projects with our comprehensive, 1 hour technical discussion fully RIBA approved which covers the major topics concerning cavity fire barriers in external.

Test Approvals

Fire Test Approvals

The product is covered by a Field of Application Report from IFC Ltd following extensive fire testing following the principles of BS EN1363-1 and in accordance with ASFP TGD19 (Fire Resistance Test for ‘Open-State’ Cavity Barriers).

Field of Application Report PAR 23492 01
